Complementing our Installation kit fabrication capabilities, Canard has designed and built avionics control panels for various systems upgrades. Over hundreds of avionics programs, the decision to buy versus build often comes into play, and with “real estate” on the Main Instrument Panel and/or the center pedestal becoming scarce, quite often it is preferred or even necessary to custom fabricate control panels (air vehicle panels) to place controls in the required position for operation, access and/or certification.
Our panels, like our installation kits – are built in-house in our FAA and AS9100D certified facility. Quality inspected and 100% tested, these control panels are the best in the industry.
Some examples are shown above, with a list of our available products below.
Get in contact with us for any requirements you may have, email: info@canardaero.com phone: 952-944-7990
| P/N | Description | A/C Type | STC/PMA | Military | Photo/CAD | ||||||

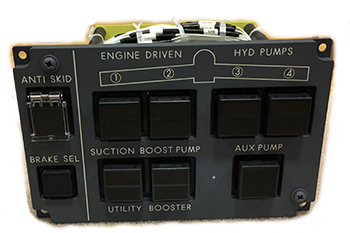

| 80825-101/102 | Hydraulic C.P. | C-130/L-100 | ** | Y | Photo | ||||||
| 80826-101/102 | Standby Power Panel | C-130/L-100 | Y | CAD | |||||||
| 80827-101/102 | Landing Light C.P. | C-130/L-100 | Y | CAD | |||||||
| 80828-xx | Speed Limitations Lightplate | C-130/L-100 | Y | CAD | |||||||
| 80829-101/102 | EFIS Source Select | C-130/L-100 | Y | CAD | |||||||
| 74953-01 | Electronic Fuel Correction Lightplate | C-130/L-100 | Y | CAD | |||||||
| 83824-101/102 | Nav Source Select | C-130/L-100 | Y | CAD | |||||||
| 83825-101 | Reversion Source Select | C-130/L-100 | Y | CAD | |||||||
| 80838-101 | EFIS/FMS/IRS Power Panel | C-130/L-100 | Y | CAD | |||||||
| 74949-01 | Nacelle Overheat Lightplate | C-130/L-100 | Y | CAD | |||||||
| 83809-101 | Display/Master Caution | C-130/L-100 | Y | CAD | |||||||
| 83831-01 | TAS Probe Heat Lightplate | C-130/L-100 | Y | CAD | |||||||
| 84240-01/02 | Air Control Lightplate | C-130/L-100 | Y | CAD | |||||||
| 84359-101 | INS Mode Select | C-130/L-100 | Y | CAD | |||||||
| 83927-101/102 | Map Control Panel | C-130/L-100 | Y | CAD | |||||||
| 83929-101 | Mission/Map Computer Power | C-130/L-100 | Y | CAD | |||||||
| 80796-501/502 | EGPWS/TAWS Control | C-130/L-100 | Y | CAD | |||||||
| 80988-101/102 | AutoPilot Mode Select Panel | C-130/L-100 | Y | CAD | |||||||
| 81209-xxx | Flight Recorder Control | C-130/L-100 | Y | CAD | |||||||
| 81372-101 | Emergency Light Control | L-100 | CAD | ||||||||
| 81373-101 | Lavatory Smoke Detector Warning | L-100 | CAD | ||||||||
| 81374-101 | Pocket Door Warning | L-100 | CAD | ||||||||
| 79985-501 | EFB Power Control | B767 | STC/PMA | CAD | |||||||
| 76307-501 | EFB Power Control | B777 | STC/PMA | CAD | |||||||
| 78870-501 | Data Loader/Select C.P. | DC-10 KDC-10 | STC/PMA | *RNLAF | CAD | ||||||
| 87069-501 | WAP/Server Power C.P. | B767 | STC/PMA | CAD | |||||||
| 81427-502 | LPV Annunciator Panel | Q400 | STC/PMA | CAD | |||||||

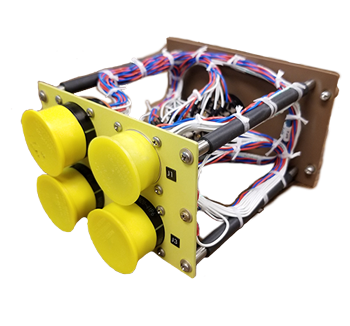

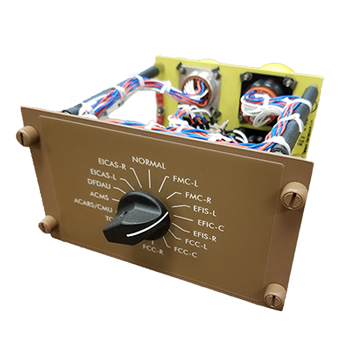

| 88082-501 | Data Loader Panel | B767 | Photo | ||||||||
| 80230-501 | Data Loader Panel | B747 | STC | Photo | |||||||
